Optimization Scheme for Rejection Rate in SMT Mounting: Key Technology Analysis and Implementation Path



Introduction: Industry Pain Points of Component Rejection

In the electronics manufacturing industry, SMT mounting is the core process of PCBA assembly. The component rejection rate directly reflects production efficiency and cost control capability. Statistics show that the industry average rejection rate ranges from 0.3% to 0.8%. Through systematic optimization, it can be reduced to below 0.1%, achieving annual cost savings of over one million yuan per production line. This paper deeply analyzes the causes of component rejection and provides a implementable full-process optimization scheme.

1. Analysis of Key Influencing Factors on Rejection Rate

Based on big data tracking and equipment log attribution, component rejection mainly stems from four dimensions:

miro.medium.com

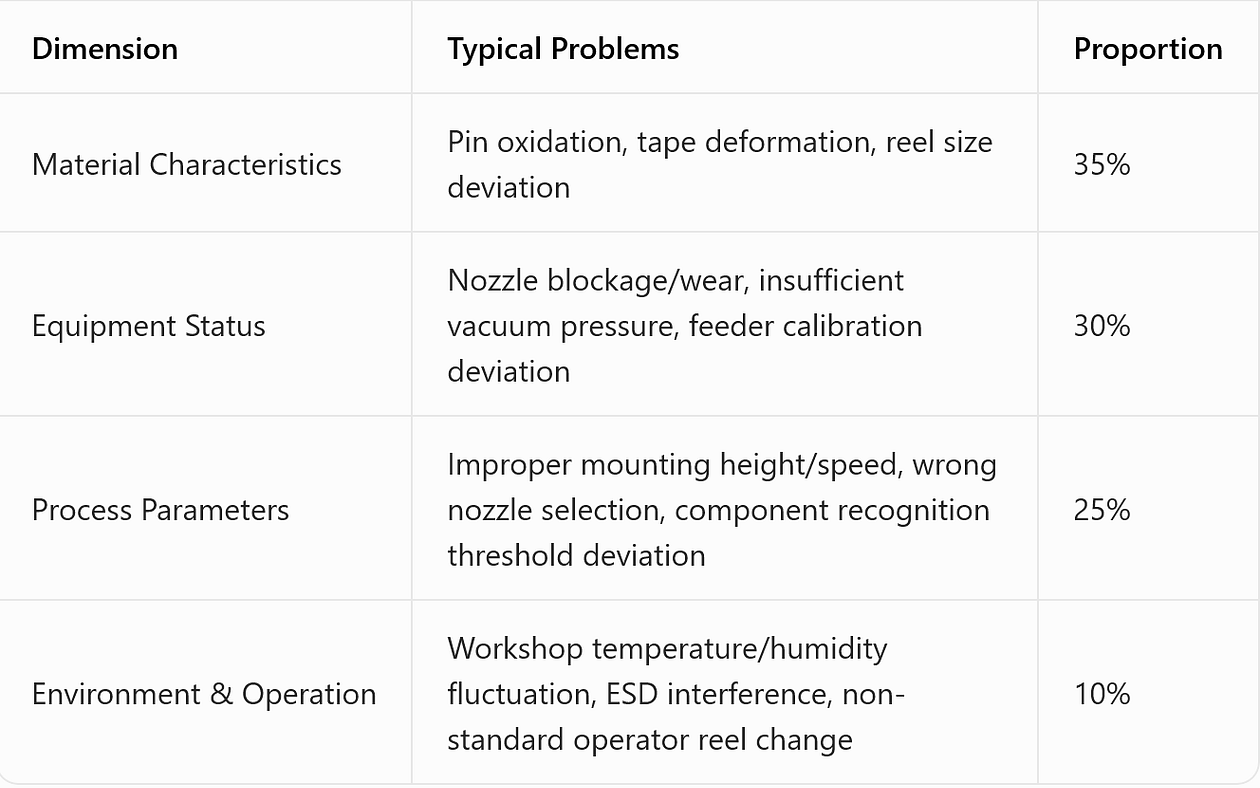

DimensionTypical ProblemsProportionMaterial CharacteristicsPin oxidation, tape deformation, reel size deviation35%Equipment StatusNozzle blockage/wear, insufficient vacuum pressure, feeder calibration deviation30%Process ParametersImproper mounting height/speed, wrong nozzle selection, component recognition threshold deviation25%Environment & OperationWorkshop temperature/humidity fluctuation, ESD interference, non-standard operator reel change10%

2. Full-Process Optimization Technical Scheme

2.1 Material Side: Intelligent Pre-Inspection and Precise Control

• AI Visual Inspection System: Deploy high-precision AOI at the incoming material stage to automatically detect defects such as pin oxidation and tape damage, with a defective product interception rate ≥ 99%.
• Dynamic Warehouse Management: Establish a cloud platform for temperature and humidity monitoring (recommended range: 23±3℃, 40–60%RH) combined with ESD packaging to reduce material storage loss.

2.2 Equipment Side: Predictive Maintenance and Intelligent Upgrade

• Nozzle Health Monitoring: Adopt vibration sensors and machine learning algorithms to monitor nozzle wear in real time and provide early replacement warnings (accuracy ±5μm).
• Adaptive Feeder Calibration: Use servo motor closed-loop control system to automatically compensate for tape pitch error, compatible with components from 0201 to QFN.

2.3 Process Side: Parameter Optimization and Knowledge Base Construction

• Digital Twin Simulation: Simulate the mounting process based on 3D models of mounters, automatically recommending optimal mounting height, speed and nozzle type (debugging efficiency improved by 50%).
• High-Rejection Component Database: Accumulate historical data and customize dedicated parameter templates for vulnerable components such as IC and BGA, enabling one-click application to reduce human error.

2.4 Management Side: Full-Link Data Traceability

• Deep Integration with MES: Collect real-time data on rejection location, time and responsible person, and generate a multi-dimensional analysis dashboard.
• Intelligent Alarm Mechanism: Automatically push work orders to equipment/process engineers when the rejection rate exceeds the threshold, achieving a 30-minute rapid response.

3. Case Study: Implementation Effect for a Smart Hardware Client

miro.medium.com

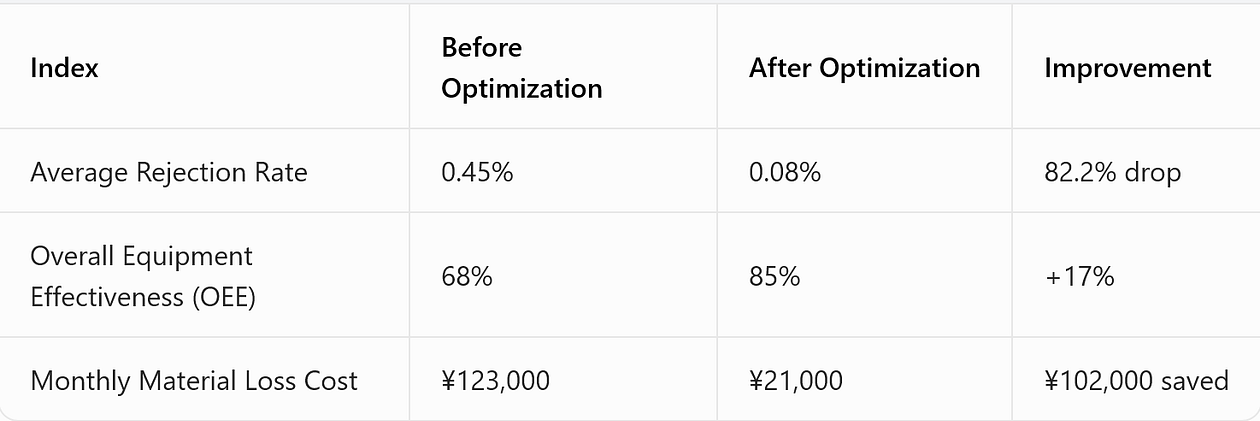

IndexBefore OptimizationAfter OptimizationImprovementAverage Rejection Rate0.45%0.08%82.2% dropOverall Equipment Effectiveness (OEE)68%85%+17%Monthly Material Loss Cost¥123,000¥21,000¥102,000 saved

4. Future Trend: AI-Driven Zero-Rejection Factory

With the popularization of Industry 4.0 technologies, AI predictive maintenance + blockchain material traceability will become the core of next-generation solutions:

• Self-Learning Mounters: Optimize mounting parameters in real time via edge computing to adapt to complex scenarios of micro-components and flexible PCBs.
• Supply Chain Collaboration Network: Share material quality data with suppliers to reduce incoming defects from the source.

Rejection rate optimization is not only a cost control issue but also a reflection of an enterprise’s intelligent manufacturing capability. The four-dimensional collaboration of materials, equipment, processes and data can achieve a double breakthrough in production efficiency and quality.
